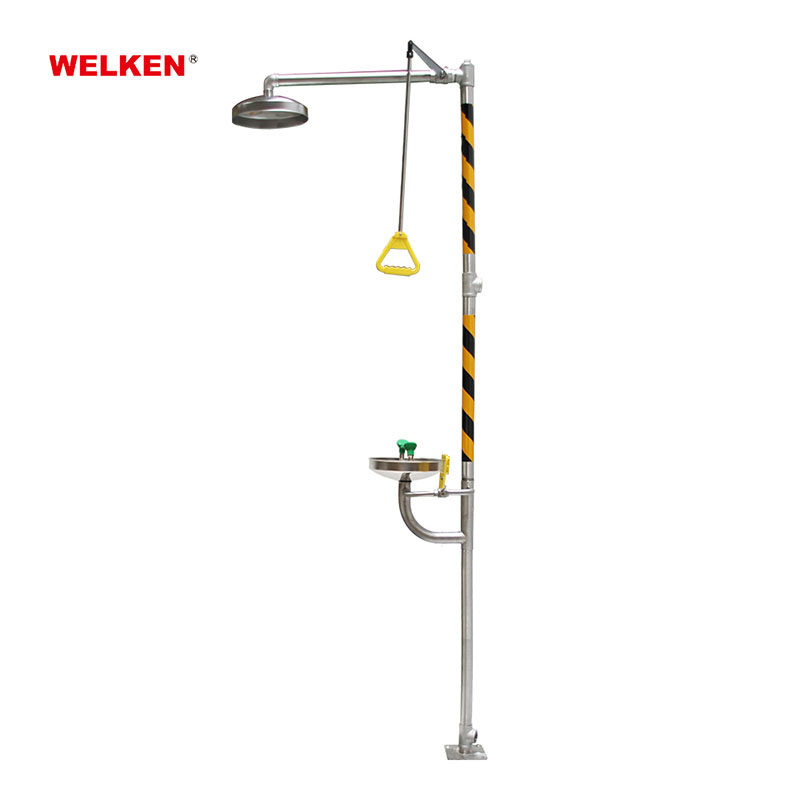

Premium BD-550A Plumbed Foot Control Shower & Eyewash Unit - China Suppliers & Factory Safe Solutions
🛡️ Core Features
Instantaneous Response: Precision engineering allows the unit to be activated less than 1 second, providing an immediate stream of water to mitigate chemical exposure.

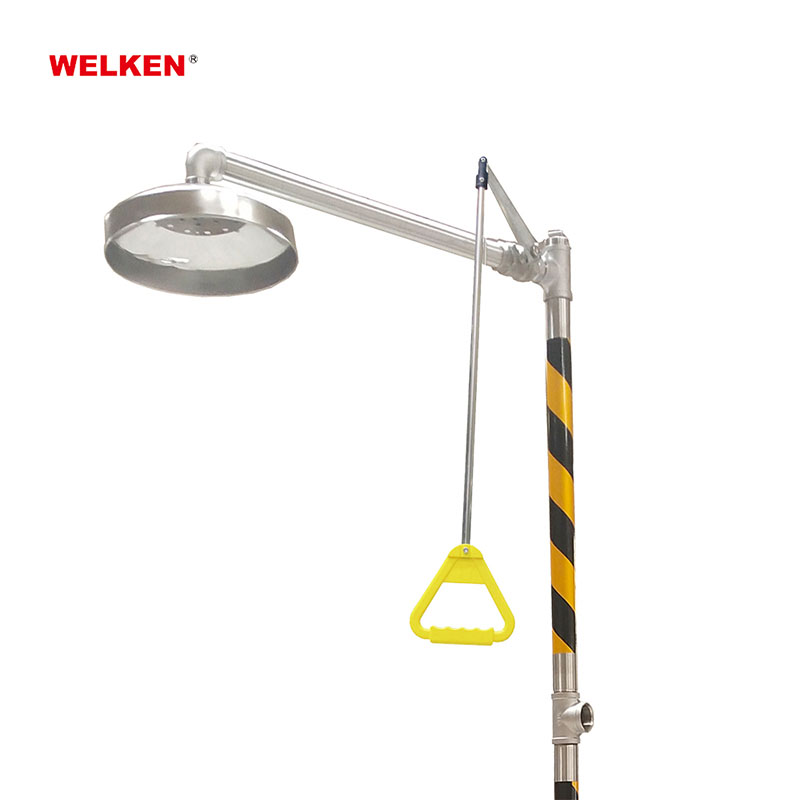

Enhanced Drench Coverage: Features a redesigned, oversized 10-inch 304 stainless steel shower head. Rigorously tested for fluid dynamics, it delivers a uniform and large-area spray pattern for rapid full-body decontamination.

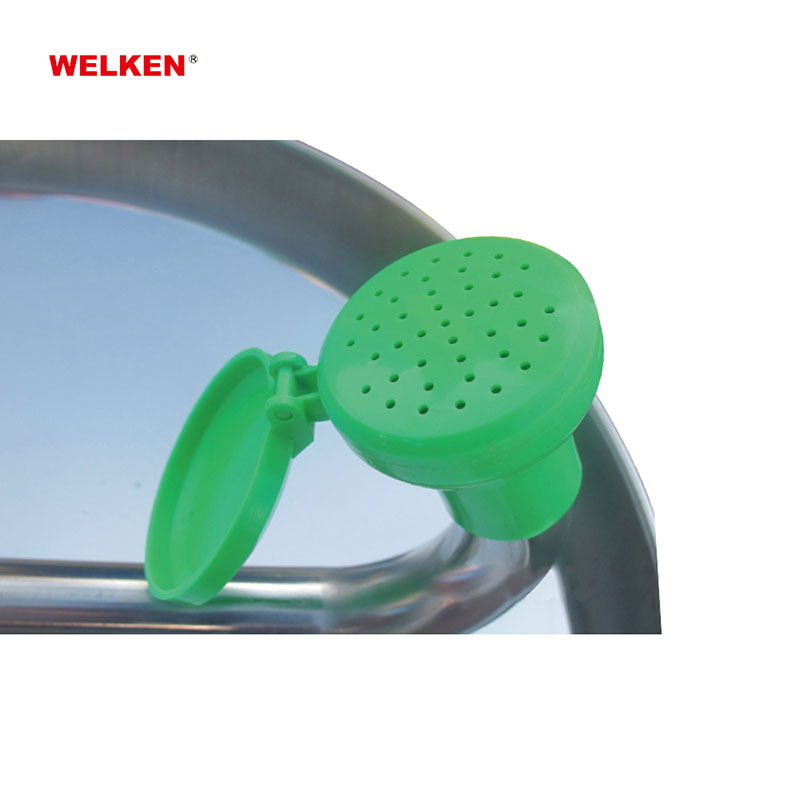

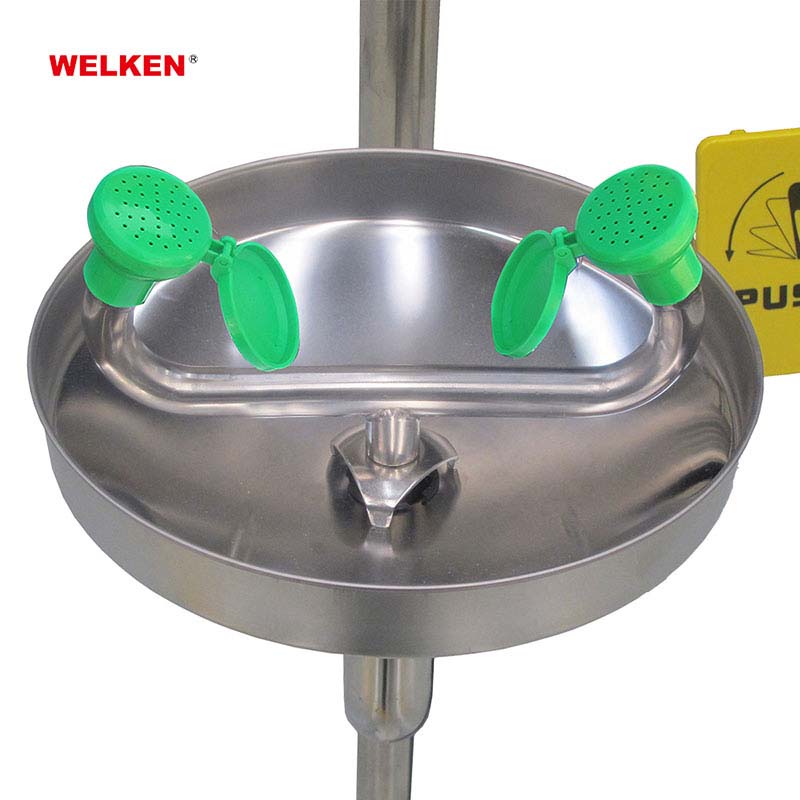

Optimal Eyewash Performance: Equipped with high-grade ABS spray heads that provide a constant flow of 11.4 L/min. The water stream is aerated and steady, ensuring effective flushing without causing discomfort to the user’s eyes.

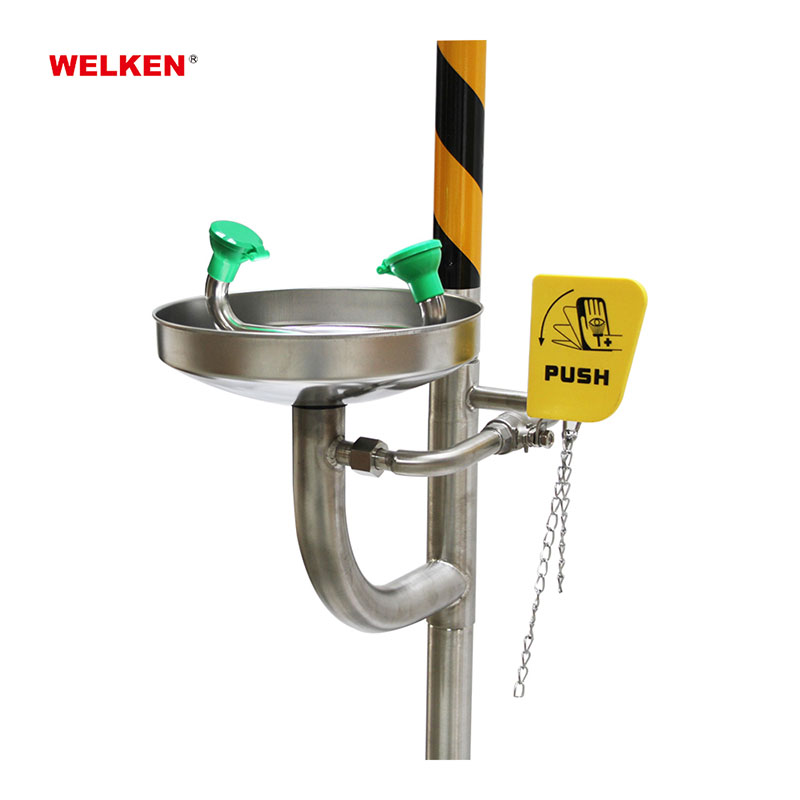

Dual Activation Control: Features both a manual activation lever for the shower and a high-visibility foot pedal for the eyewash, allowing hands-free operation during critical emergencies.
Superior Durability: Built with a full 304 stainless steel piping system and ball valves, offering exceptional resistance to corrosion, rust, and chemical degradation.
Fully Customizable: We provide tailored solutions to meet specific site requirements, including material upgrades, additional alarm systems, or optional accessories.
📋 Technical Specifications
| Feature | Specification |
|---|---|
| Material (Plumbing) | High-quality 304 Stainless Steel |
| Shower Head | 10’’ 304 Stainless Steel |
| Eyewash Nozzles | High-grade ABS (Safety Green) |
| Shower Valve | 1’’ 304 Stainless Steel Ball Valve |
| Eyewash Valve | 1/2’’ 304 Stainless Steel Ball Valve |
| Activation Method | Manual Pull Rod & High-grade ABS Foot Pedal (White) |
| Eyewash Flow Rate | ≥11.4 L/Min (3 GPM) |
| Shower Flow Rate | ≥75.7 L/Min (20 GPM) |
| Inlet / Outlet Size | 1-1/4’’ NPT/BSP |
| Hydraulic Pressure | 0.2 MPA - 0.6 MPA |
| Water Source | Plumbed, Potable Water or Filtered Water |
| Compliance | Meets ANSI Z358.1 & CE Standards |
