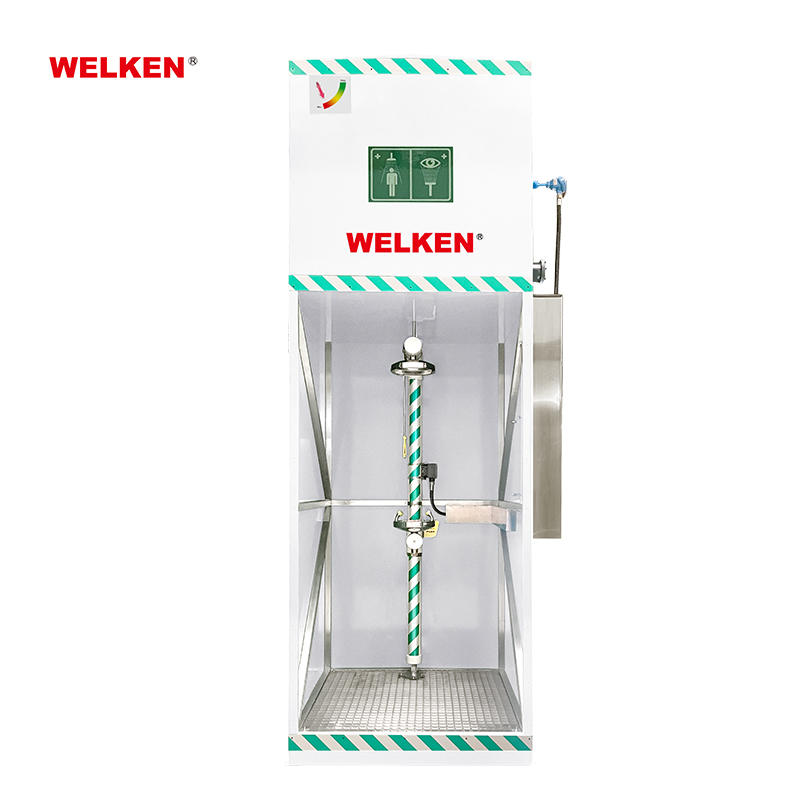

China Suppliers BD-602B-GC GRP Tank-Fed Safety Shower with Heating System - Factory Direct Emergency Equipment

The BD-602B-GC is a robust, self-contained emergency station designed specifically for industrial environments in China, particularly in cold regions where temperatures may plunge below zero. In these challenging conditions, conventional safety equipment can be compromised due to frozen valves and pipes, making them ineffective during critical safety incidents, To guarantee optimal reliability, the BD-602B-GC is equipped with a powerful integrated heating system that includes internal tank heaters and superior insulation. The shower and eyewash piping are safeguarded with advanced heat-tracing cables encased in a durable exterior, effectively preventing freezing. Additionally, this model features an integrated collection sump (wastewater basin) at its base to collect drainage, which helps avoid spills on the ground and reduces the risk of hazardous ice patches or slip hazards, As a leading manufacturer in China, our factory specializes in high-quality emergency safety solutions, ensuring that your industrial site remains compliant and safe, even in the harshest winter conditions. Choose the BD-602B-GC to protect your workforce and maintain functionality when it matters most

    Core Features

    Tank Heating & Insulation Equipped with an internal heating element and a high-performance insulation layer to maintain water temperatures within the ANSI-compliant range (16–38°C), even when environmental temperatures drop below zero.
    Trace-Heated System All pipes and valves are wrapped in electric heat-tracing cables and enclosed in a protective shell, ensuring the shower and eyewash remain unfrozen and ready for immediate activation.
    Waste Water Sump Features an integrated water collection basin that prevents wastewater from discharging directly onto the floor, eliminating ice formation and slip-and-fall risks.
    Independent Water Supply Engineered for remote sites without fixed water connections, utilizing a high-capacity overhead tank refillable via mobile water carts.
    Flexible Capacity Options Standard 1200L and 1500L configurations ensure ANSI compliance, with custom sizes available for specialized site requirements.
    Dual Emergency Response High-capacity drench shower and precision-flow eyewash, both capable of activation in under 1 second.
    Fully Customizable Tailored solutions including material upgrades, additional alarm systems, or optional accessories to meet specific site needs.

    Technical Specifications

    Feature Specification
    Model BD-602B-GC
    Housing Material High-Grade GRP (Glass Reinforced Plastic) Panels
    Frame Material Heavy-Duty 304 Stainless Steel
    Heating System Internal Tank Heater + Pipe Heat Tracing (Self-Regulating)
    Thermal Protection High-Performance Insulation Layer + Protective Pipe Shell
    Tank Capacity 1200L / 1500L (Customizable options available)
    Shower Flow Rate ≥75.7 L/Min (20 GPM)
    Eyewash Flow Rate ≥11.4 L/Min (3 GPM)
    Water Inlet Size 1-1/4’’
    Overflow Outlet 1’’
    Activation Method Manual Pull Rod & Hand Push Board
    Application Cold Regions, Remote Construction, Chemical, Oil & Gas, Mining, Deserts
    Compliance Meets ANSI Z358.1 & CE Standards (EN 15154-5)

    Frequently Asked Questions

    Does the BD-602B-GC meet international safety standards?
    Yes, the station is fully compliant with ANSI Z358.1 and CE Standards (EN 15154-5), ensuring it meets global safety requirements for emergency equipment.
    How does the station perform in extremely cold environments?
    The station features a dual heating system: an internal tank heater for the water supply and self-regulating trace-heating cables for all pipes and valves, protected by high-performance insulation to prevent freezing.
    What are the water flow rates for the shower and eyewash?
    The drench shower provides a flow rate of ≥75.7 L/Min (20 GPM), while the eyewash unit delivers a precision flow of ≥11.4 L/Min (3 GPM).
    Can this unit be installed in locations without a fixed water line?
    Yes, it is specifically engineered for remote sites. It uses a high-capacity overhead tank (1200L/1500L) that can be refilled via mobile water carts.
    What is the purpose of the integrated waste water sump?
    The waste water sump collects used water to prevent it from spilling onto the floor, which is critical in cold regions to avoid ice formation and secondary slip-and-fall accidents.
    Are custom sizes and materials available?
    Absolutely. We offer fully customizable solutions, including different tank capacities, material upgrades, and additional alarm systems to fit your specific site requirements.
