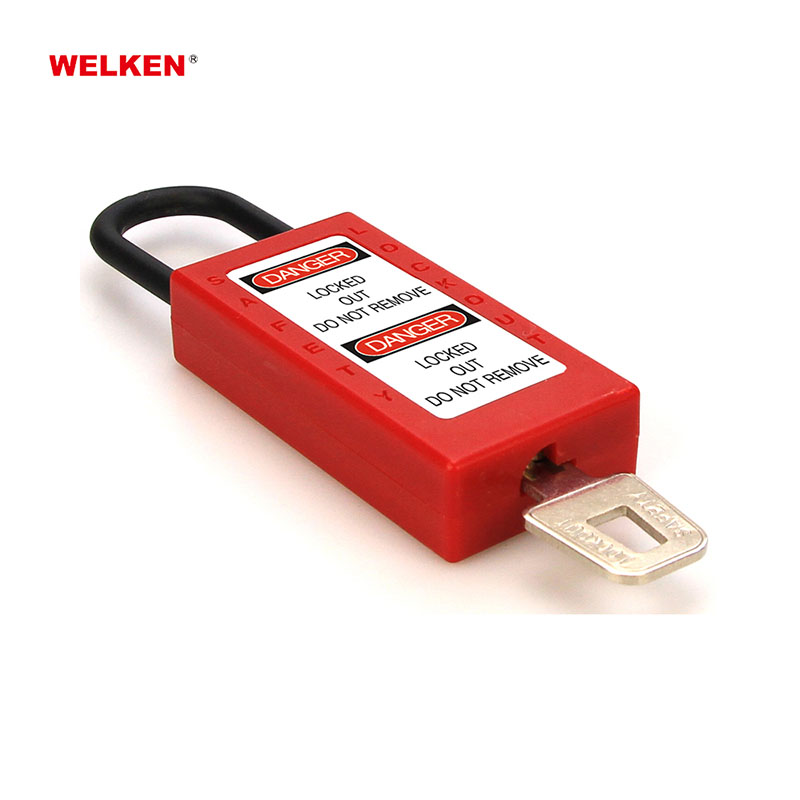

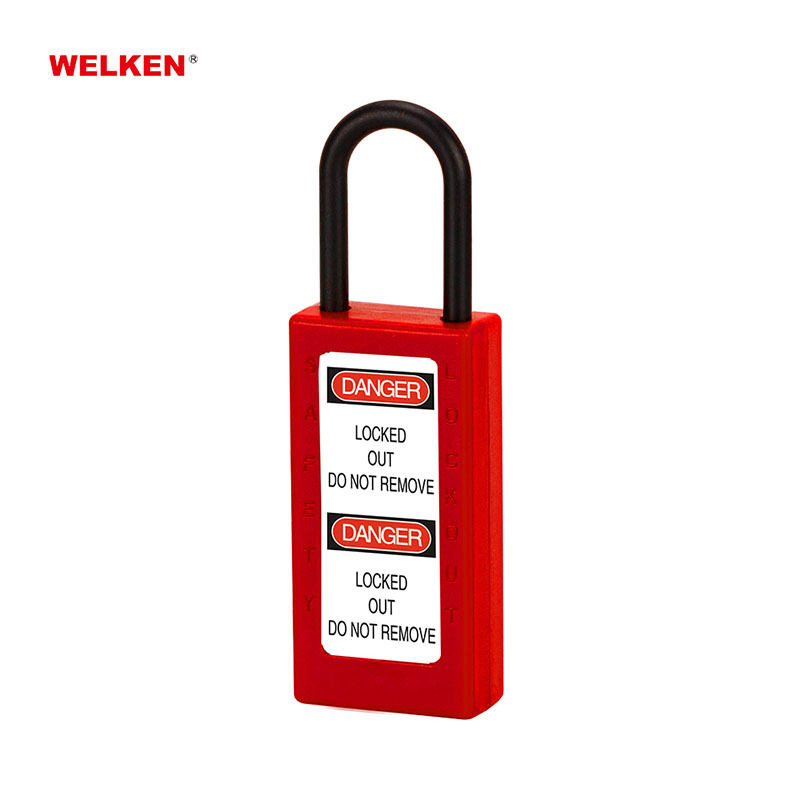

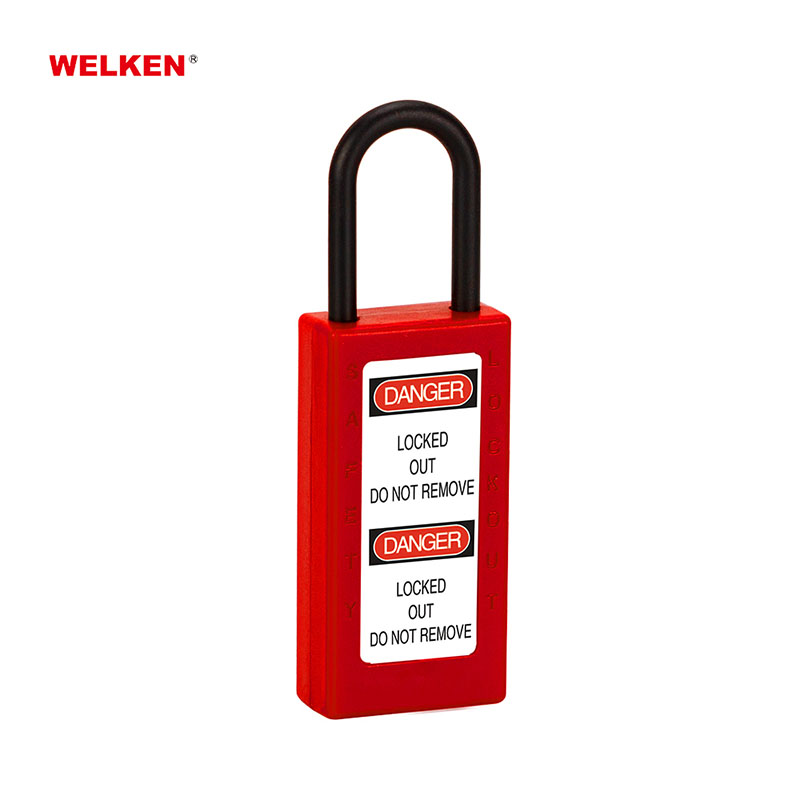

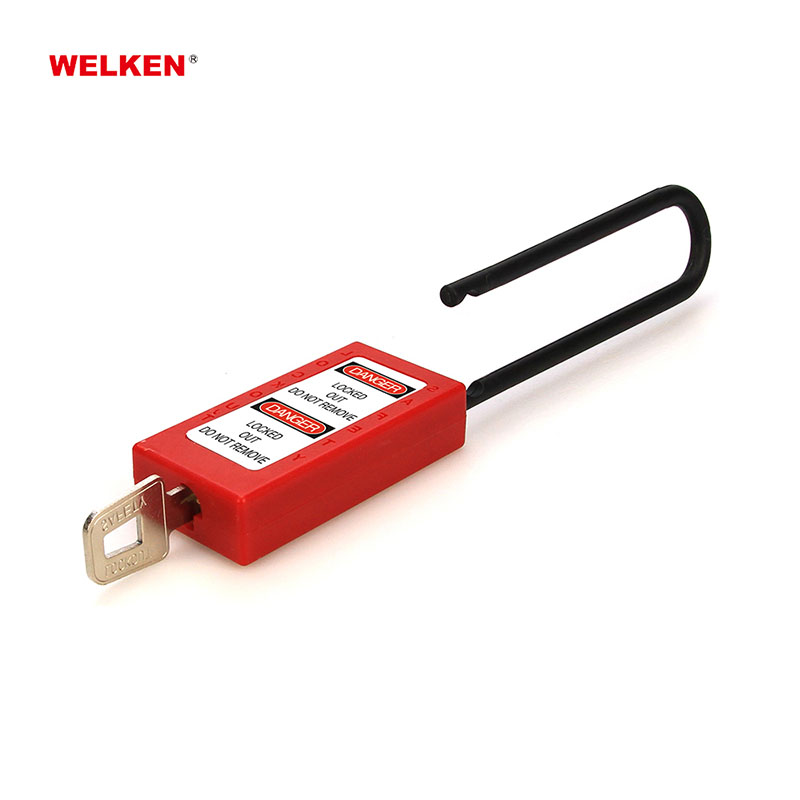

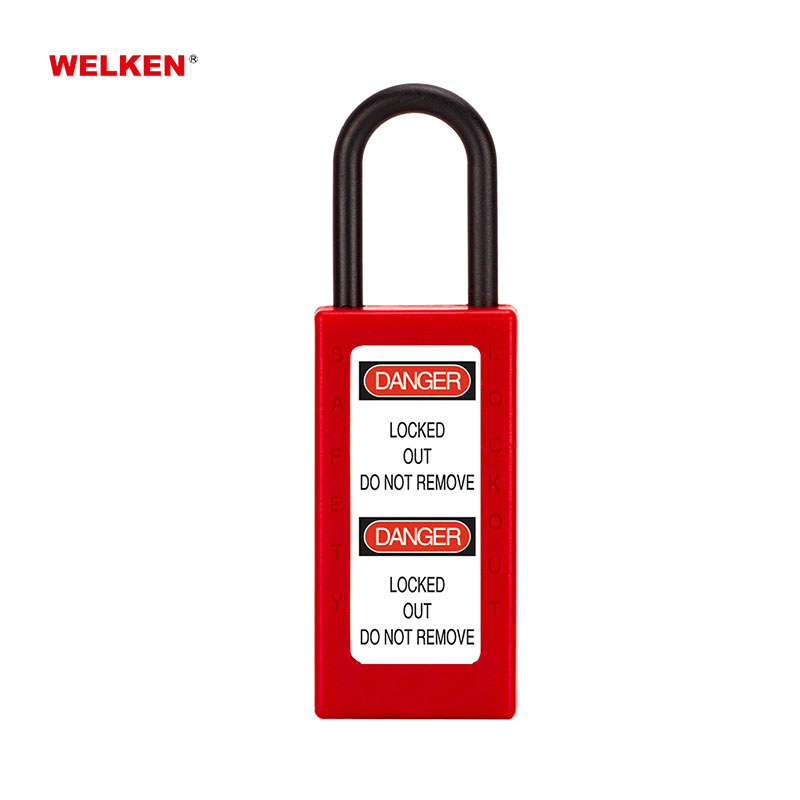

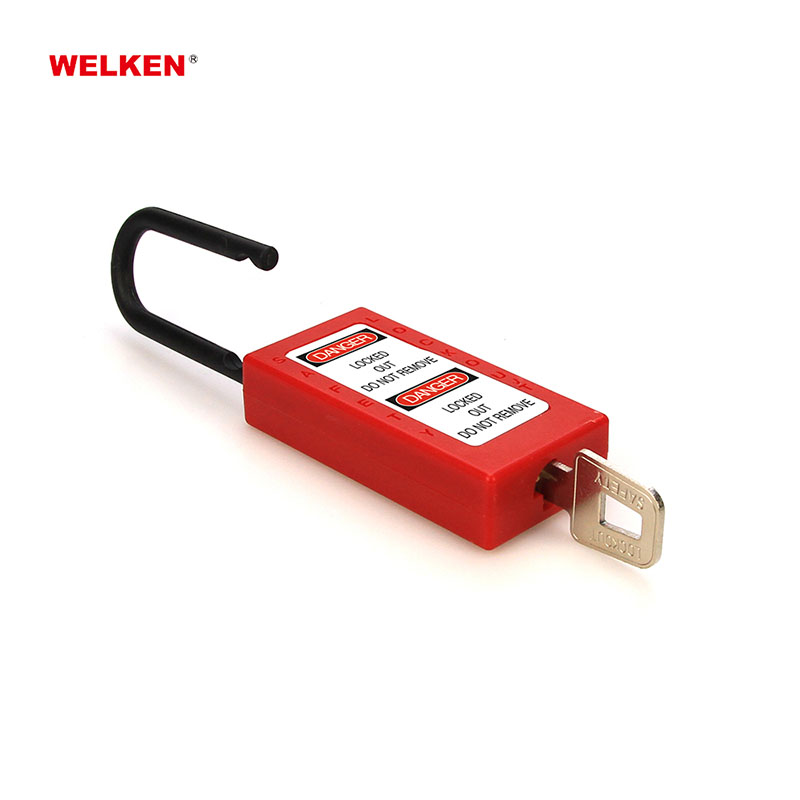

BD-8571N Long Lock Body Non-conductive Nylon Shackle Safety Padlock

The BD-8571N is a premium industrial lock-out padlock configured with an oversized 80mm long body structure and a completely dielectric reinforced nylon shackle. Engineered specifically to meet rigid OSHA compliance guidelines, this fully insulated padlock provides total galvanic isolation, effectively blocking electrical current transfer and eliminating spark hazards during critical maintenance operations. The extended vertical chassis yields immense surface area for accommodating prominent safety tagout logs, multi-language data sheets, and local workforce tracking details. Encased in a hardened ABS engineering framework, it exhibits extreme structural resistance to hard impacts, continuous sun exposure, chemical solvents, and high-thermal fluctuations. This specialized architecture makes it the ultimate safety safeguard for high-voltage distribution panels, hazardous petrochemical plants, military storage bases, and volatile mine shafts.

    01
    Fully Insulated Non-Conductive Shackle: Constructed from top-tier reinforced nylon, the shackle guarantees complete spark protection, anti-magnetism, and absolute electrical isolation for zero-risk lockouts in electrical and petrochemical zones.
    02
    Extended 80mm Visual Warning Chassis: The expanded vertical long-body layout delivers maximizing space for hosting bilingual compliance stamps, master asset barcodes, and highly detailed physical inspector registries.
    03
    Heavy-Impact Corrosive-Resistant ABS Shell: Molded from industrial ABS compound, the outer housing remains immune to chemical splashes, violent impacts, prolonged UV rays, and extreme temperature changes.
    04

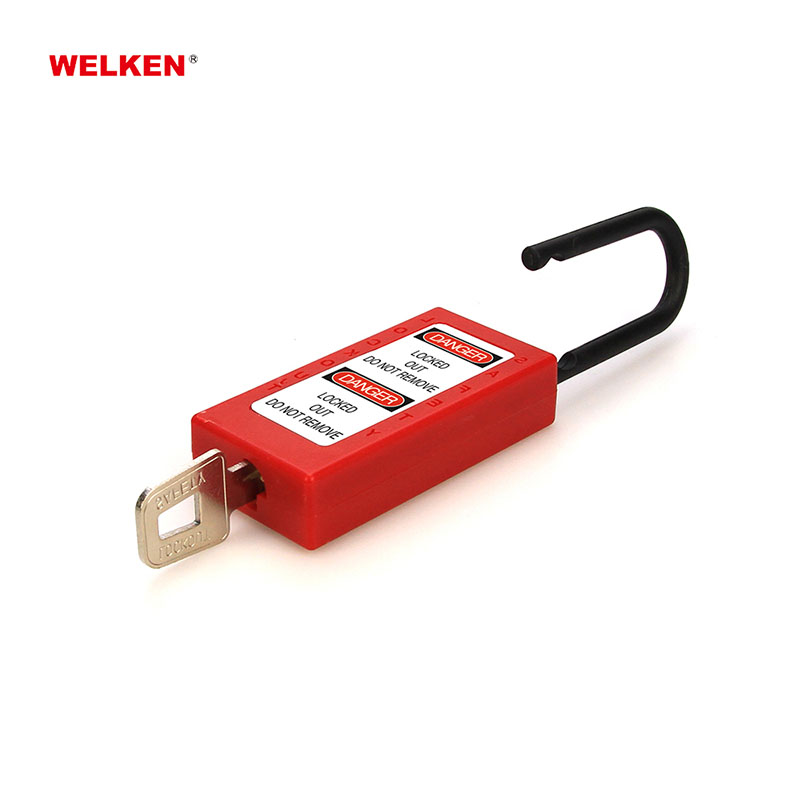

    Intelligent Key-Retaining Safety Cylinder: Features an advanced engineering core that holds fast to the key while the nylon shackle is open, preventing accidental field displacement and ensuring true lockout verification before key extraction.
    05

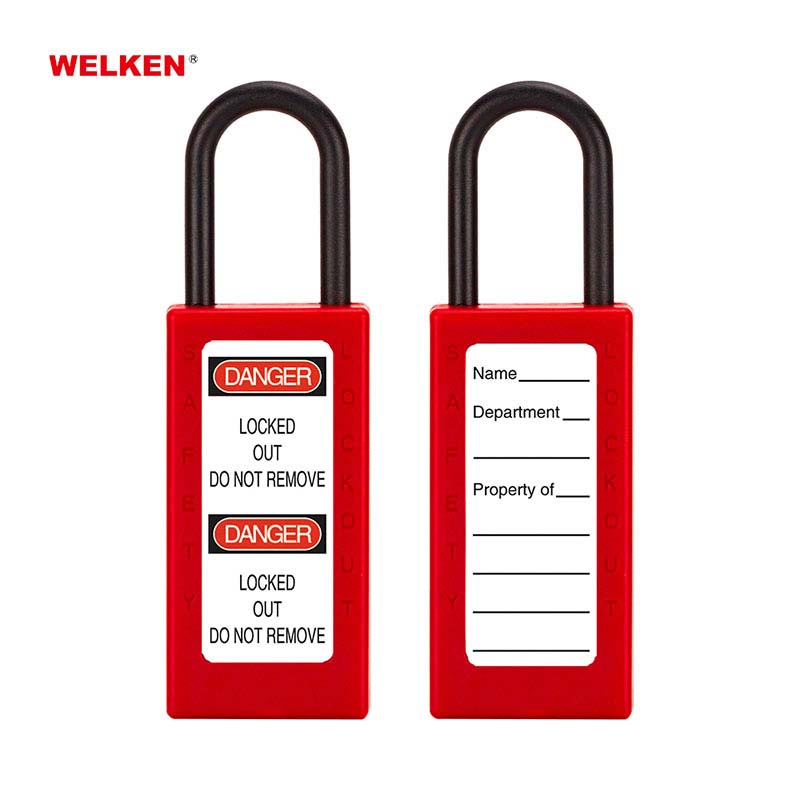

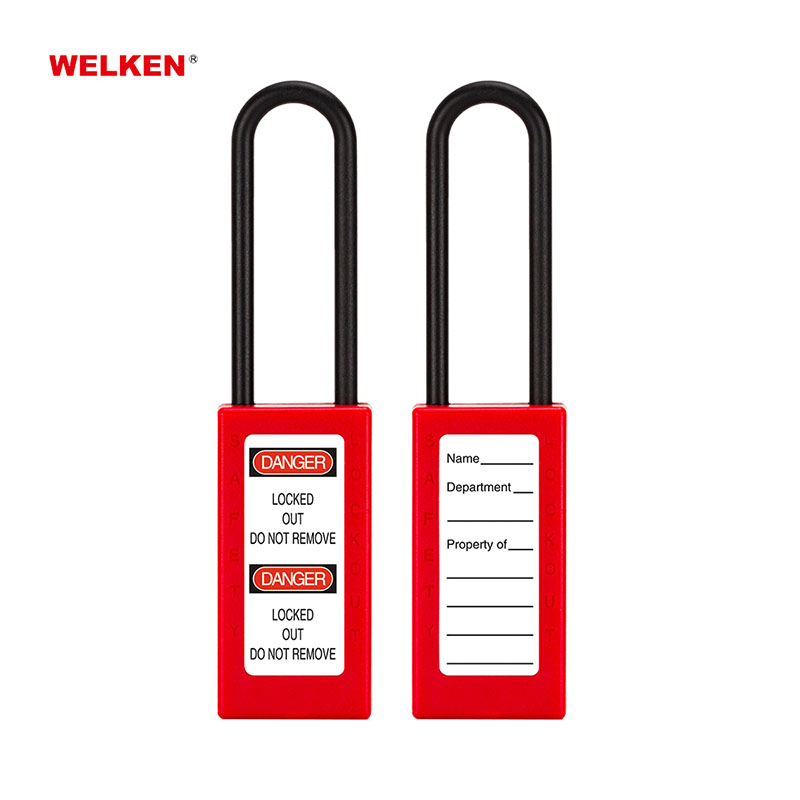

    Dual-Sided High-Visibility Label Arrays: Equipped with two comprehensive sets of write-on labels ('Danger' and 'Property of') that attach flawlessly to the smooth ABS surface for clear personnel logging.
    06
    16 Segmented Safety Coding Colors: Available in 16 highly noticeable colors to facilitate structured coding by specific engineering trades, shift operations, or facility hazard levels, drastically reducing manual sorting errors.
    07
    Administrative Master Key Solutions: Perfectly scalable for complex facility-wide lockout deployment, supporting four dedicated sub-series configurations: BD-8571N (Keyed to Differ), BD-8572N (Keyed Alike), BD-8573N (Master & Alike), and BD-8574N (Master & Differ).

    Feature

    Specification

    Model

    BD-8571N

    Body Material

    High-grade Reinforced ABS

    Shackle Material

    High-Quality Non-conductive Nylon (Insulation)

    Body Dimensions

    80mm (H) x 40mm (W) x 19mm (T)

    Shackle Diameter

    6mm

    Shackle Clearance

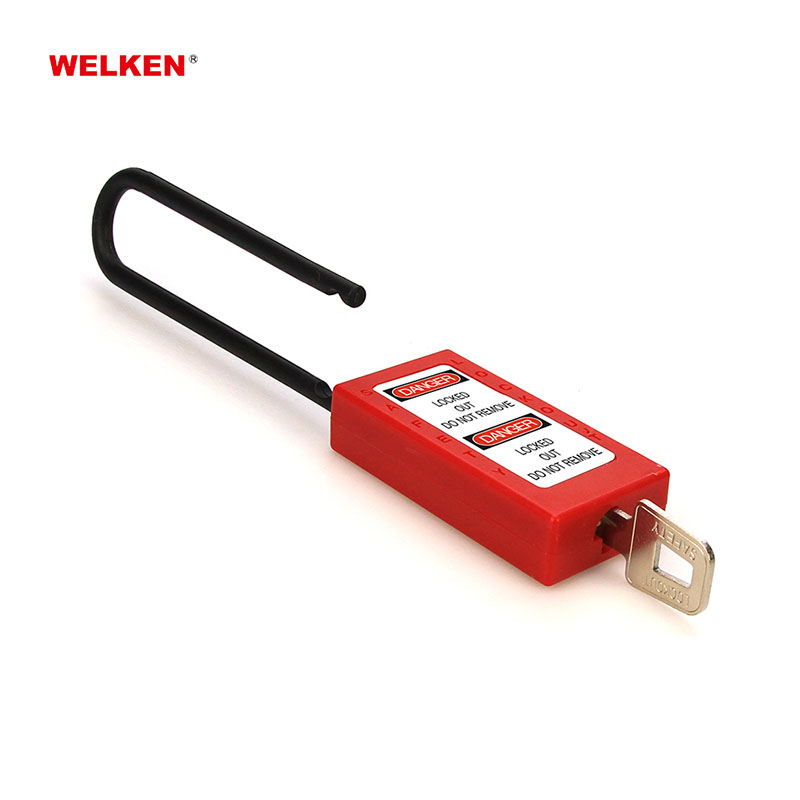

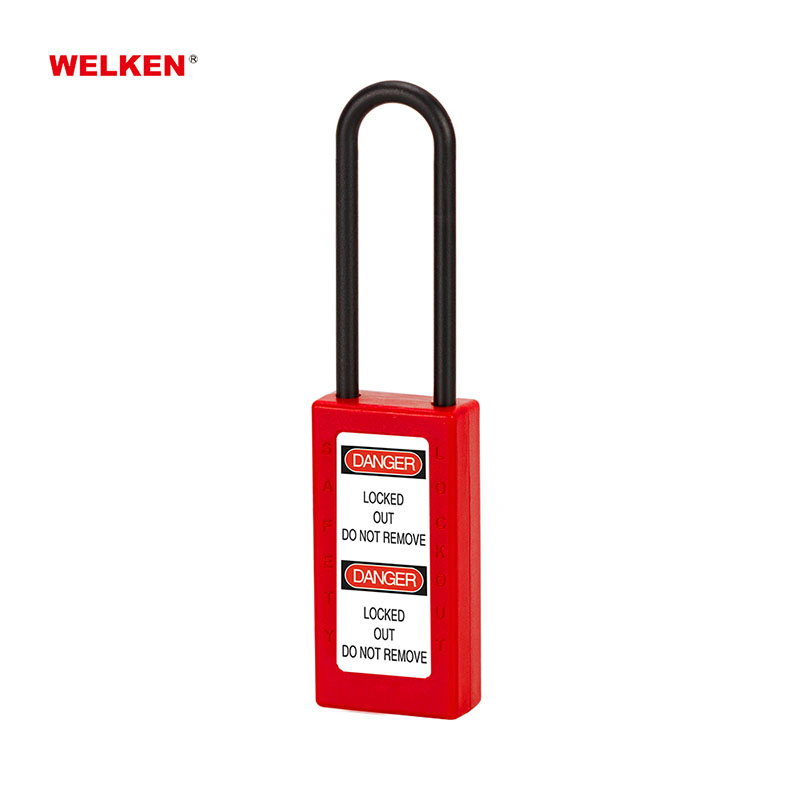

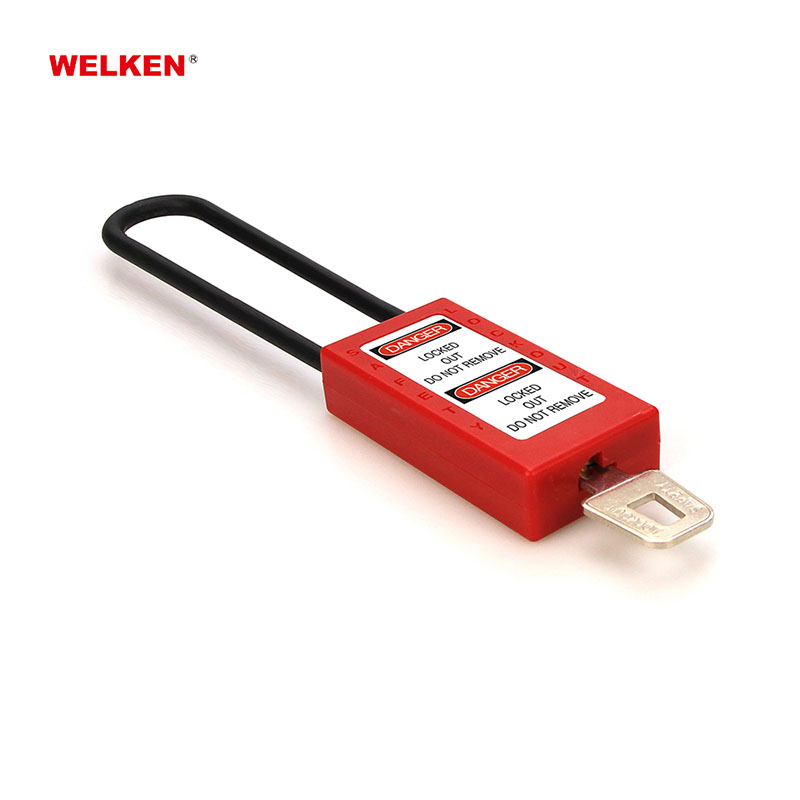

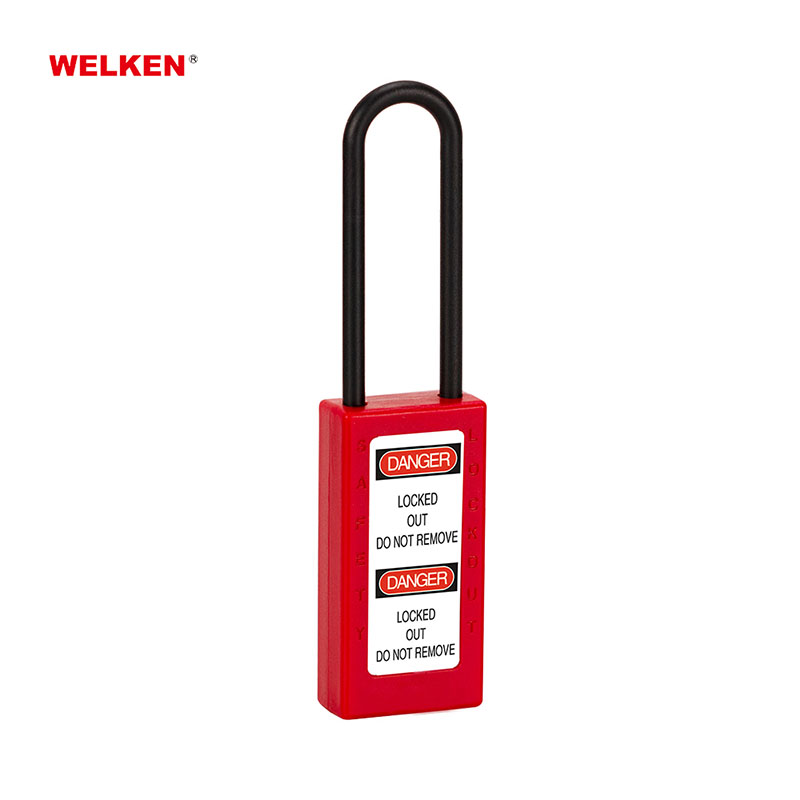

    38mm (BD-8571N) / 76mm (BD-8575N)

    Safety Features

    Non-conductive, Anti-magnetism, Explosion-proof, UV/Corrosion-resistant

    Color Options

    16 High-Visibility Colors

    Labeling

    Dual-Sided Write-on Warning Labels (Customizable Languages)

    Key System

    KD, KA, MK-KA, MK-KD available
