BD-550E01 China Full Stainless Steel Emergency Eye Wash Shower - Top Suppliers & Factory Quality
Core Features
Advanced Splash Containment

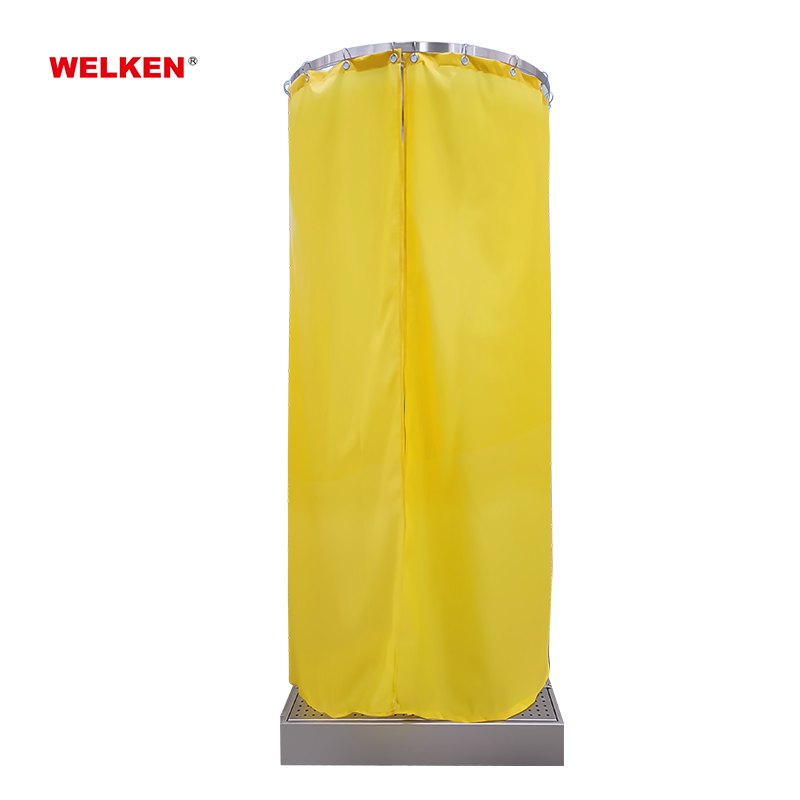

Features a high-visibility, eye-catching yellow waterproof curtain that prevents water from splashing into the surrounding work area during use.
Integrated Wastewater Management
Equipped with a specialized water collection basin at the base to ensure all used water is contained and properly drained.
Dual Activation for Shower

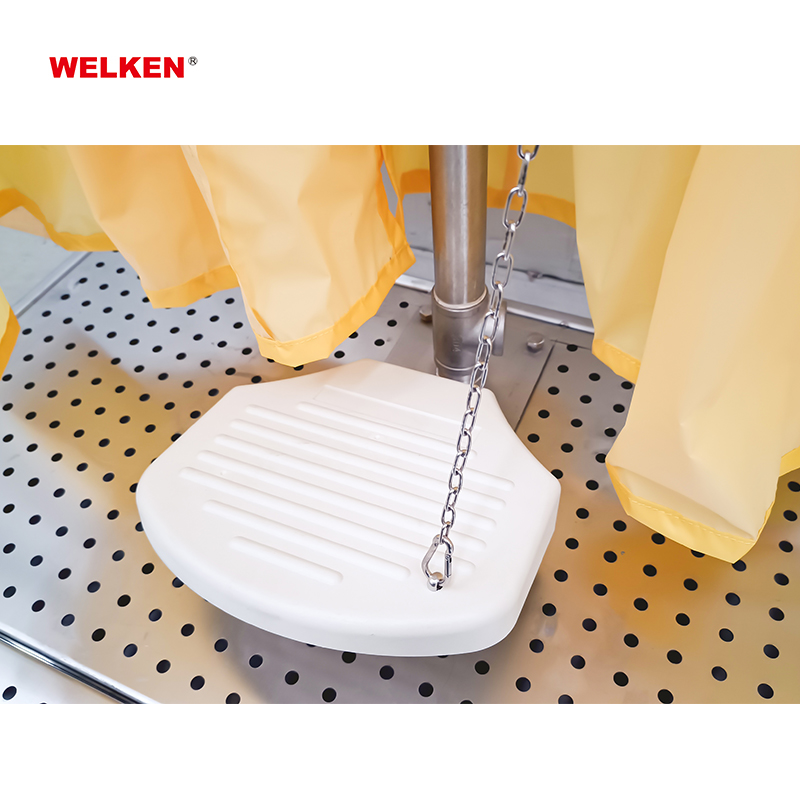

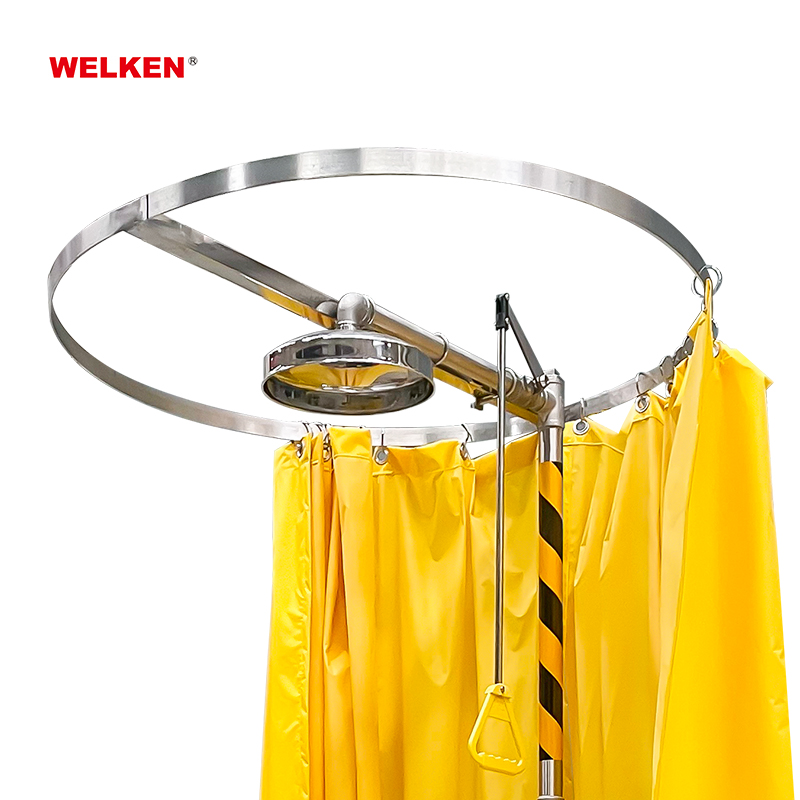

The drench shower can be activated via either a manual pull rod or a high-grade foot pedal for rapid response.
Instantaneous Response
Precision engineering allows both the shower and eyewash to be activated in less than 1 second.

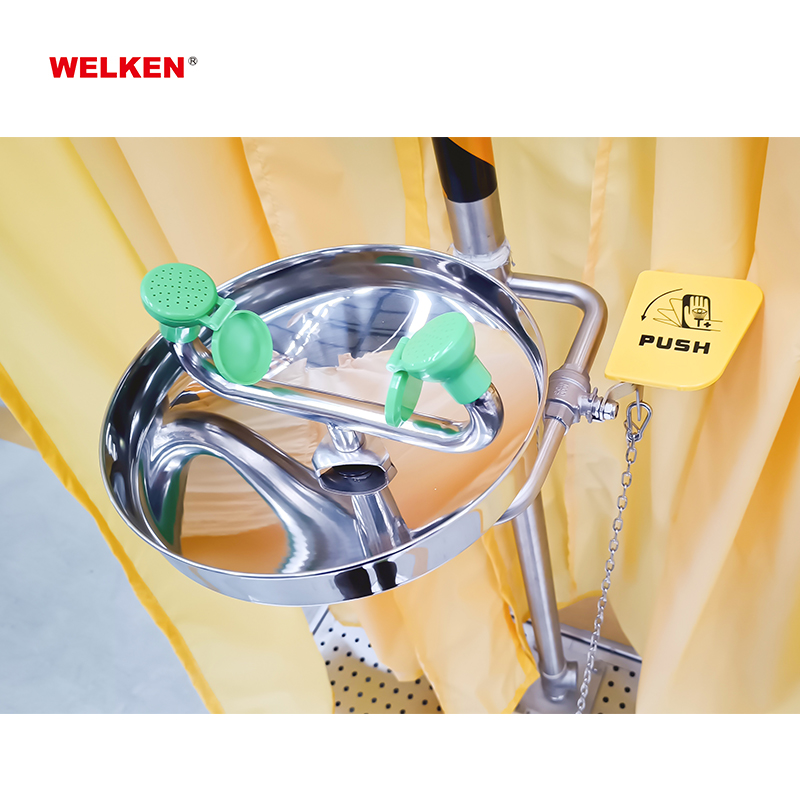

Optimal Eyewash Performance
High-grade ABS spray heads provide a constant, aerated flow of 11.4 L/min for effective eye irrigation.
Superior Durability
Constructed with a full 304 stainless steel piping system and ball valves, offering exceptional resistance to corrosion.
Technical Specifications
| Feature | Specification |
|---|---|
| Model | BD-550E01 |
| Material (Plumbing) | High-quality 304 Stainless Steel |
| Curtain | Circular Yellow PVC Waterproof Safety Curtain |
| Shower Head | 10’’ 304 Stainless Steel |
| Eyewash Nozzles | High-grade ABS (Safety Green) |
| Activation (Shower) | Manual Pull Rod & Foot Pedal |
| Activation (Eyewash) | Manual Hand Push Board |
| Waste Containment | Integrated Wastewater Collection Basin |
| Shower Flow Rate | ≥75.7 L/Min (20 GPM) |
| Eyewash Flow Rate | ≥11.4 L/Min (3 GPM) |
| Inlet / Outlet Size | 1-1/4’’ NPT/BSP |
| Hydraulic Pressure | 0.2 MPA - 0.6 MPA |
| Water Source | Plumbed, Potable Water or Filtered Water |
| Compliance | Meets ANSI Z358.1 & CE Standards |
Frequently Asked Questions
Does the BD-550E01 comply with international safety standards?
Yes, this model fully meets ANSI Z358.1 and CE standards, ensuring it provides the required flow rates and response times for industrial safety.
What are the advantages of the integrated wastewater basin?
The basin prevents hazardous wastewater from spreading across the floor, reducing slip-and-fall risks and making the cleanup process much more efficient.
Can the shower be operated hands-free?
Yes, the drench shower features dual activation. While it has a manual pull rod, it also includes a high-grade foot pedal for hands-free operation during emergencies.
Is the material resistant to chemical corrosion?
Absolutely. The entire piping system and ball valves are constructed from 304 stainless steel, which provides excellent resistance to a wide range of industrial chemicals.
What is the required water pressure for this unit?
The unit operates optimally within a hydraulic pressure range of 0.2 MPA to 0.6 MPA.
Are custom modifications available for specific sites?
Yes, we offer fully customizable solutions including material upgrades, additional alarm systems, and various optional accessories to meet your specific facility needs.
