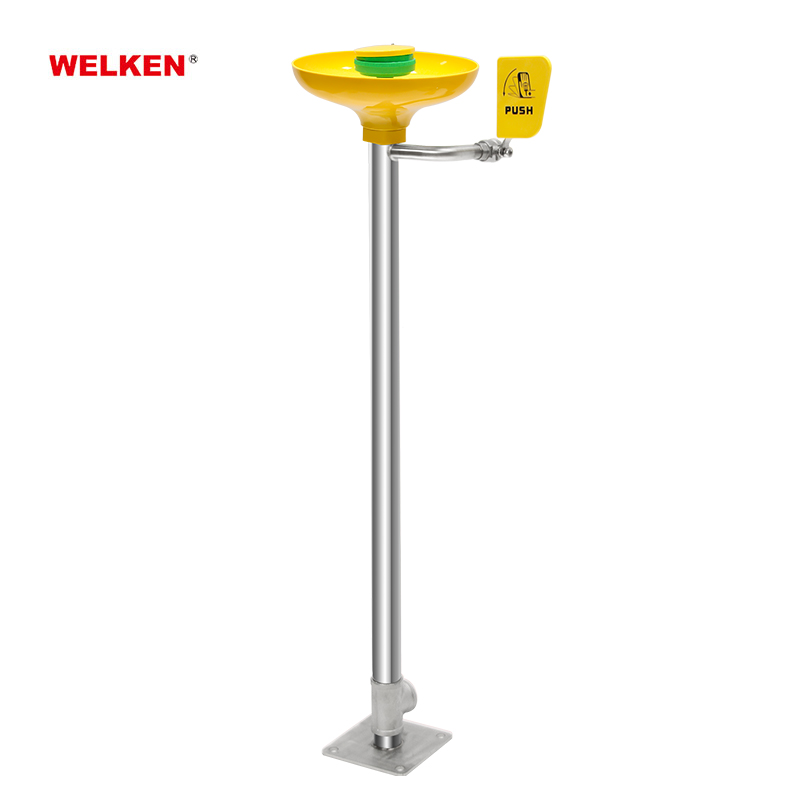

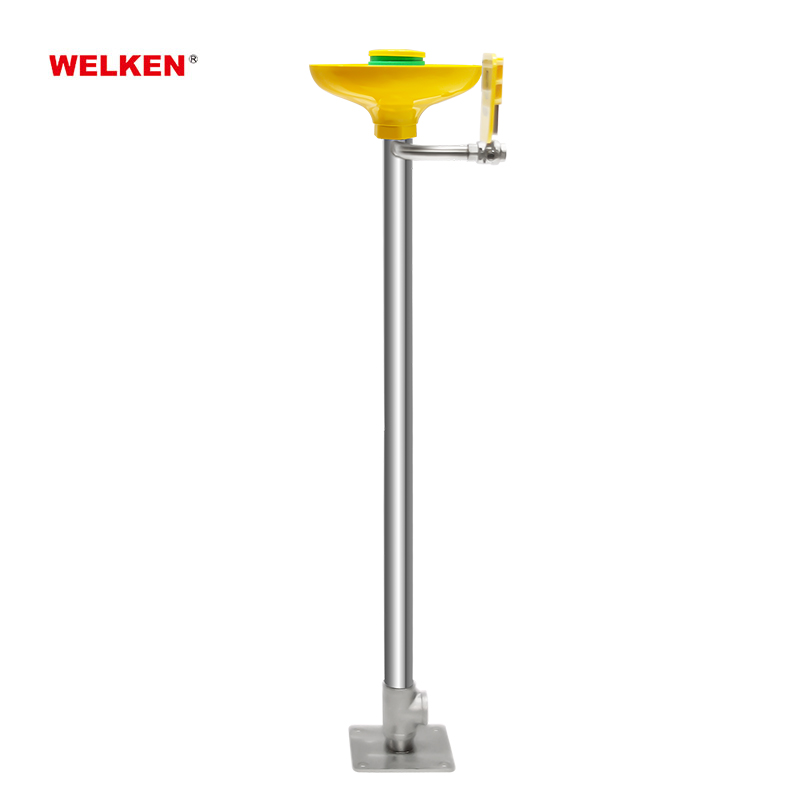

BD-540F Pedestal Mounted Eye & Face Wash Station
01
Full Facial Coverage: The single green ABS eye/face wash head features a sloped surface design that directs water across the entire face, ensuring comprehensive decontamination in a single activation.
02

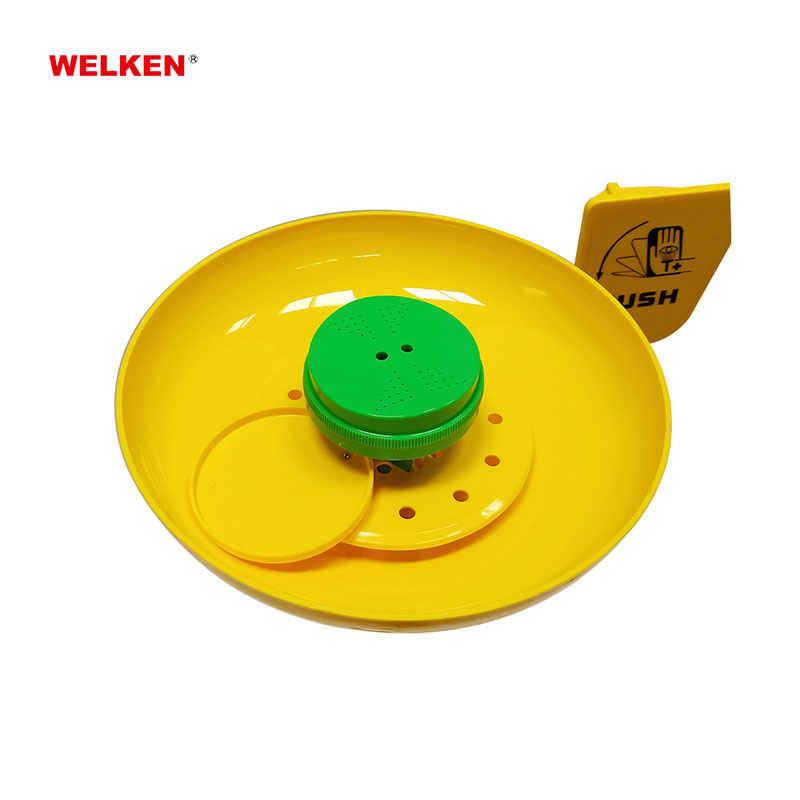

High-Visibility Yellow ABS Bowl: The bright yellow ABS eyewash bowl offers excellent chemical resistance and is easy to spot under emergency conditions, supporting rapid response.
03

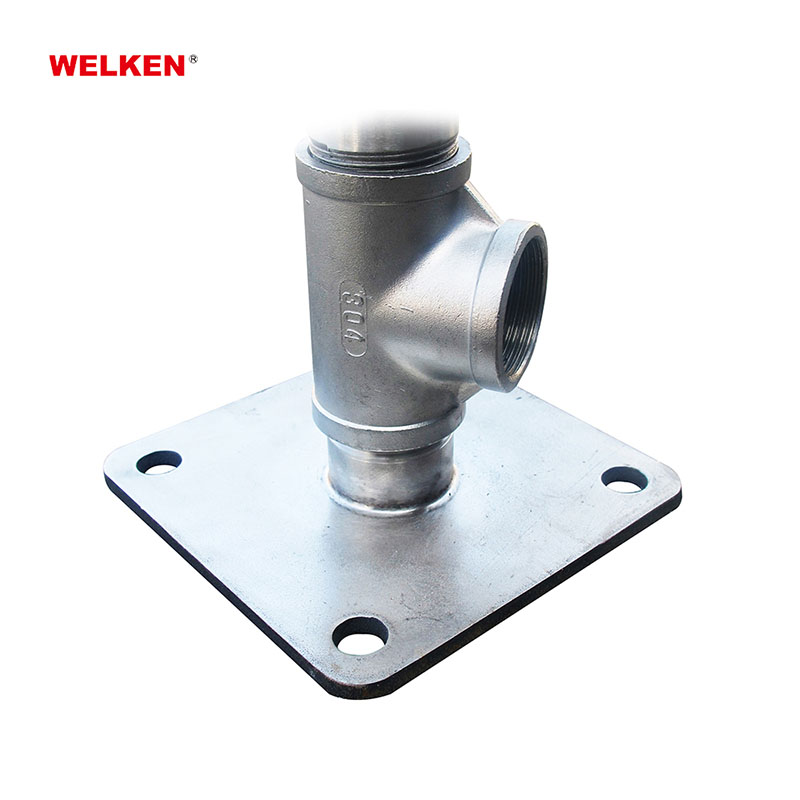

304 Stainless Steel Main Body: The structural body and plumbing are fabricated from 304 stainless steel, delivering reliable corrosion resistance and durability across demanding environments. 316 stainless steel is available for extreme corrosive conditions.
04
Instantaneous Response: Activates in under 1 second, immediately delivering water to the affected area to minimize injury.
05
Auto Pop-Off Dust Cover: The eye/face wash head includes a dust-proof cover that automatically pops off upon activation, ensuring the nozzle remains clean and ready for use.
06
High-Visibility Manual Activation: A prominent yellow push board enables quick, intuitive activation — even under impaired visibility or stressful conditions.
07
Fully Customizable: Available with material upgrades, alarm system integration, and optional accessories to meet site-specific safety requirements.
|
Feature |
Specification |
|
Model |
BD-540F |
|
Material (Body & Plumbing) |
High-quality 304 Stainless Steel |
|
Eyewash Bowl |
High-quality Yellow ABS |
|
Eye/Face Wash Head |
ABS (Safety Green), Single Head with Sloped Surface Design, Yellow ABS Auto Pop-Off Dust Cover |
|
Eyewash Valve |
1/2'' 304 Stainless Steel Ball Valve |
|
Activation Method |
High-Visibility Manual Push Board |
|
Flow Rate |
≥11.4 L/Min (3 GPM) |
|
Coverage |
Full Facial Coverage |
|
Hydraulic Pressure |
0.2 MPA – 0.6 MPA |
|
Water Source |
Plumbed, Potable Water or Filtered Water |
|
Compliance |
Meets ANSI Z358.1 & CE Standards |
· A controlled, low velocity flow rinses both eyes and is not harmful to the user.
· Water flow is high enough to allow user to hold eyes open while rinsing.
· Spray heads are protected from airborne contaminants. Covers can be easily removed by water flow.
· Unit delivers no less than 3 gallons(11.4 liters) per minutes of clean waters for at least 15 minutes.
· Water flow pattern is positioned between 33” (83.8 cm) and 53” (134.6 cm) from the floor and at least 6” (15.3 cm) from the wall or nearest obstruction.
· Instant activation, hands-free stay-open valve.
· Easily user-accessible actuator.
· Unit washes both eyes simultaneously.
Protective Packaging:
Each unit is encased in molded foam padding and an outer reinforced carton, safeguarding the product against impact and rough handling during transit.
