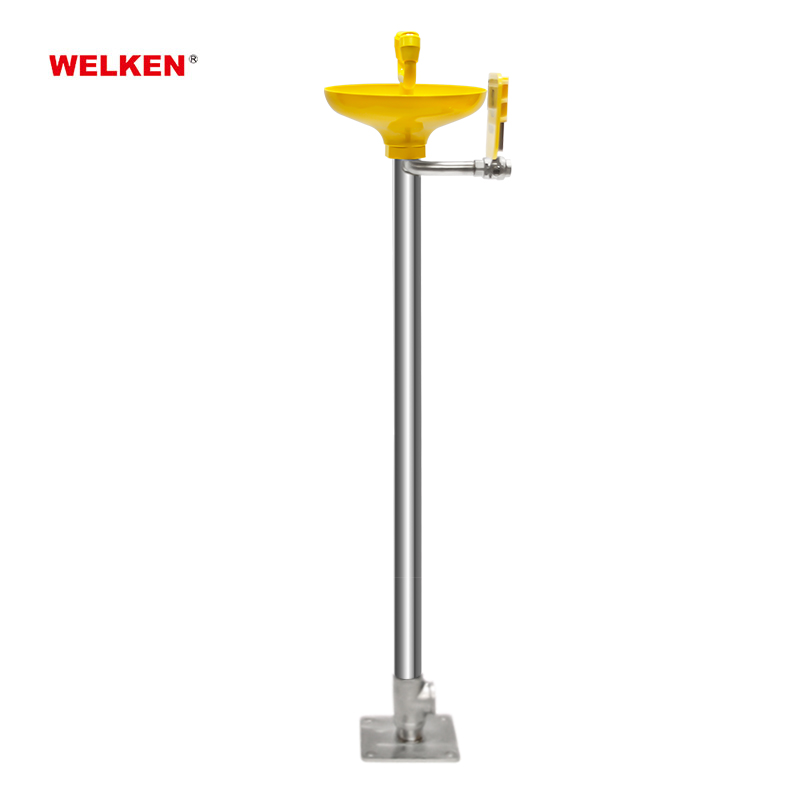

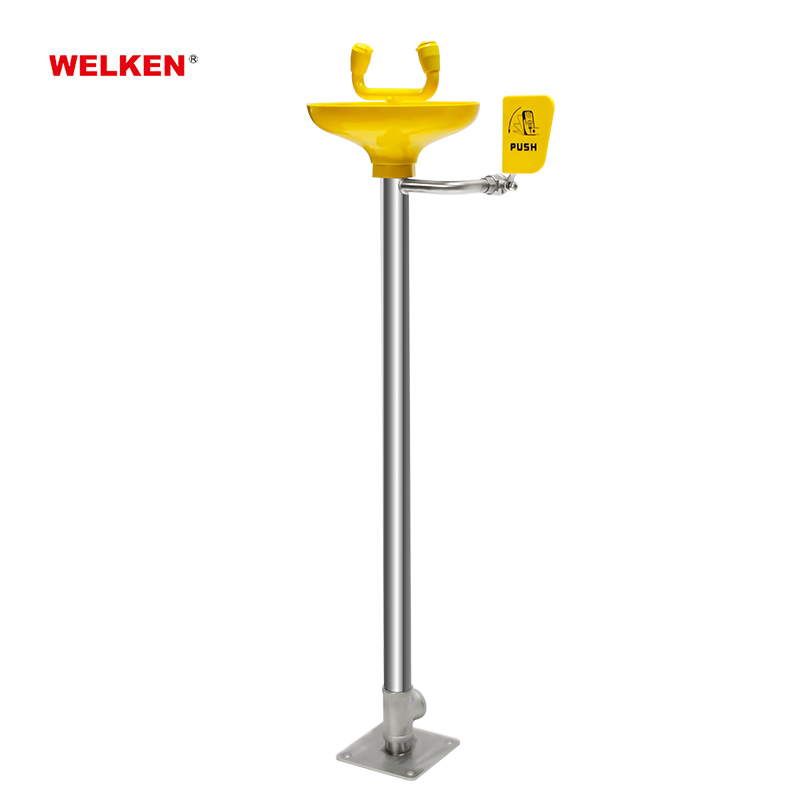

BD-540A Pedestal Mounted Eye Wash Station – Industrial-Grade Performance
01
Instantaneous Response: Engineered for activation in under 1 second, delivering immediate water flow to minimize chemical exposure and eye injury risk.
02

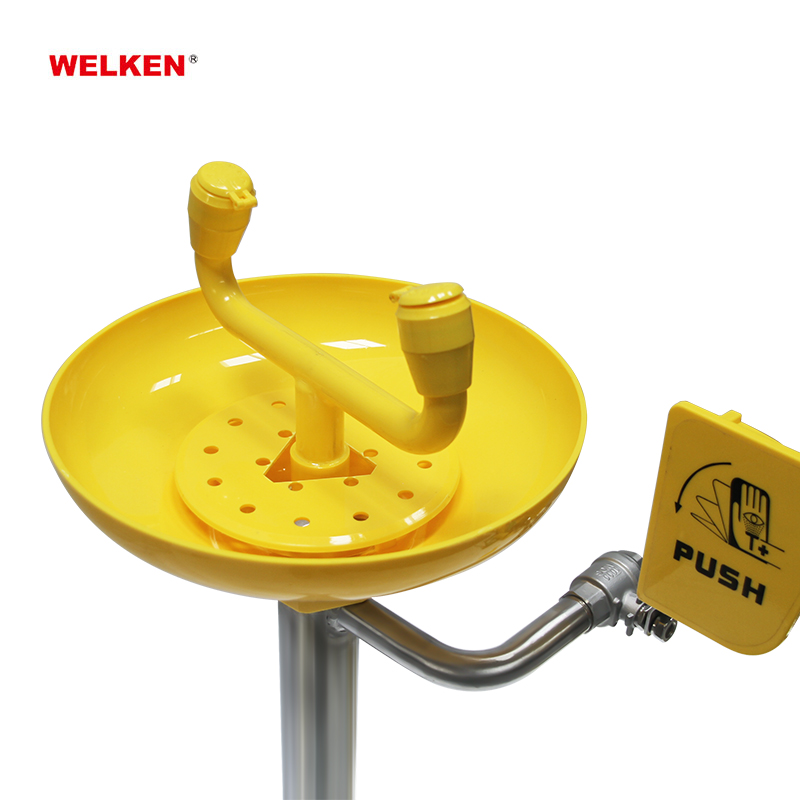

High-Visibility Yellow ABS Bowl: The bright yellow eyewash bowl is easy to locate under stress, with a robust ABS construction that offers excellent chemical resistance for most industrial applications.
03
Auto Pop-Off Dust Covers: ABS spray heads are fitted with dust-proof covers that automatically pop off upon activation, ensuring nozzles remain clean and unobstructed between uses.
04
Optimal Eyewash Flow: Dual ABS spray heads deliver a steady, aerated flow of ≥11.4 L/min (3 GPM) per ANSI Z358.1 requirements, effectively flushing contaminants without causing user discomfort.
05
304 Stainless Steel Plumbing: The entire piping and valve system is constructed from 304 stainless steel, providing dependable corrosion resistance in demanding environments. 316 stainless steel is available as option for extreme corrosive conditions.
06
High-Visibility Manual Activation: A prominent yellow push board enables rapid, intuitive activation — even under stress or impaired visibility.
07
Fully Customizable: Tailored solutions are available including material upgrades, alarm system integration, and optional accessories to meet specific site requirements.
|
Feature |
Specification |
|
Model |
BD-540A |
|
Material (Plumbing) |
High-quality 304 Stainless Steel |
|
Eyewash Bowl |
High-quality Yellow ABS |
|
Eyewash Nozzles |
High-grade ABS (Safety Yellow), with Auto Pop-Off Dust Covers |
|
Eyewash Valve |
1/2'' 304 Stainless Steel Ball Valve |
|
Activation Method |
High-Visibility Manual Push Board |
|
Eyewash Flow Rate |
≥11.4 L/Min (3 GPM) |
|
Hydraulic Pressure |
0.2 MPA – 0.6 MPA |
|
Water Source |
Plumbed, Potable Water or Filtered Water |
|
Compliance |
Meets ANSI Z358.1 & CE Standards |
· A controlled, low velocity flow rinses both eyes and is not harmful to the user.
· Water flow is high enough to allow user to hold eyes open while rinsing.
· Spray heads are protected from airborne contaminants. Covers can be easily removed by water flow.
· Unit delivers no less than 3 gallons(11.4 liters) per minutes of clean waters for at least 15 minutes.
· Water flow pattern is positioned between 33” (83.8 cm) and 53” (134.6 cm) from the floor and at least 6” (15.3 cm) from the wall or nearest obstruction.
· Instant activation, hands-free stay-open valve.
· Easily user-accessible actuator.
· Unit washes both eyes simultaneously.
Protective Packaging:
Each unit is encased in molded foam padding and an outer reinforced carton, safeguarding the product against impact and rough handling during transit.
