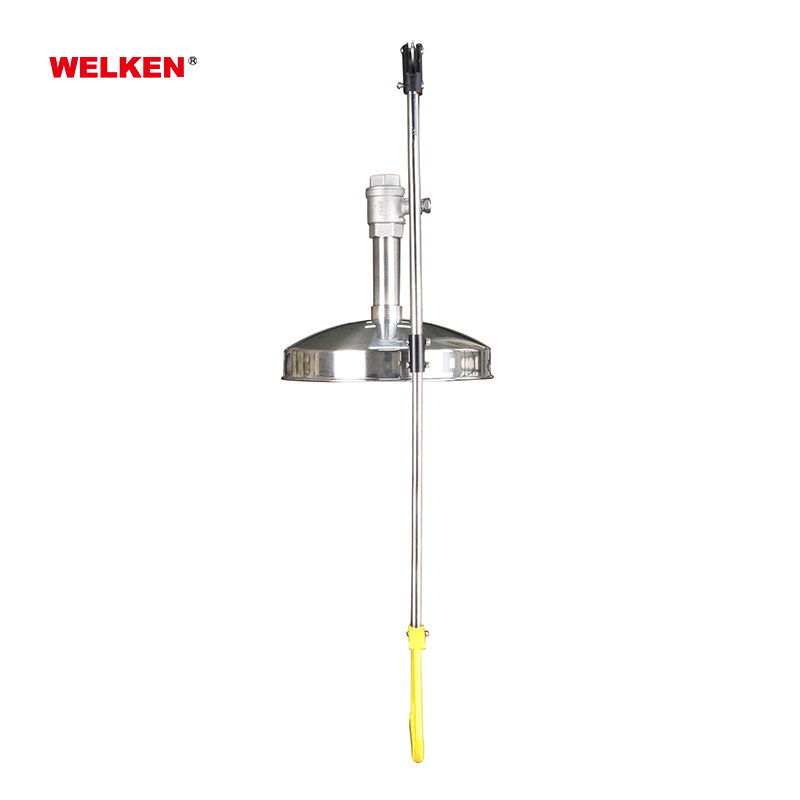

BD-508X Ceiling-Mounted Stainless Steel Safety Shower Device
01
Ceiling-Mount Architecture: Overhead installation delivers water directly downward across the head, shoulders, and torso for comprehensive rapid body decontamination without worker positioning challenges.
02
Full 304 Stainless Steel Construction: Bowl, valve, frame, and water distribution system all crafted from premium stainless steel for absolute durability in harsh environments.
03
Large-Volume Body Shower Design: The 304 stainless steel shower bowl collects and distributes water across a wide surface area, providing full-body coverage beyond eye or face washing alone.
04
1/2" Stainless Steel Valve System: Heavy-duty valve component rated for continuous high-flow operation, ensuring quick activation and sustained performance during extended emergency flushing.
05
Rapid Full-Body Decontamination: Delivers high-volume water flow for chemical removal, thermal cooling, or radioactive dust washing across the entire upper body.
06
Complementary to Eye Wash Systems: Works alongside eyewash stations as a complete emergency response solution for multi-injury or large-scale contamination events.
|
Feature |
Specification |
|
Model |
BD-508X |
|
Main Piping |
304 Stainless Steel |
|
Shower Bowl |
304 Stainless Steel |
|
Activation Method |
Pull Rod |
|
Shower Flow Rate |
≥75.7 L/Min |
|
Inlet |
1/2’’ |
|
Hydraulic Pressure |
0.2 MPA - 0.6 MPA |
|
Water Source |
Plumbed, Potable Water or Filtered Water |
|
Compliance |
Meets ANSI Z358.1 & CE Standards |
·A controlled, low velocity flow rinses both eyes and
is not harmful to the user.
·Water flow is high enough to allow user to hold eyes
open while rinsing.
·Spray heads are protected from airborne contaminants.
Covers can be easily removed by water flow.
·Unit delivers no less than 0.4 gallons(1.5 liters) per
minutes of clean waters for at least 15 minutes.
·Water flow pattern is positioned between 33” (83.8
cm) and 53” (134.6 cm) from the floor and at least
6” (15.3 cm) from the wall or nearest obstruction.
·Instant activation, hands-free stay-open valve.
·Easily user-accessible actuator.
·Unit washes both eyes simultaneously. Check below
test gauge for a reference of the correct water flow
cover area.
Protective Packaging:
Each unit is encased in molded foam padding and an outer reinforced carton, safeguarding the product against impact and rough handling during transit.
