BD-508D Hybrid Stainless Steel & ABS Eye & Face Wash
01

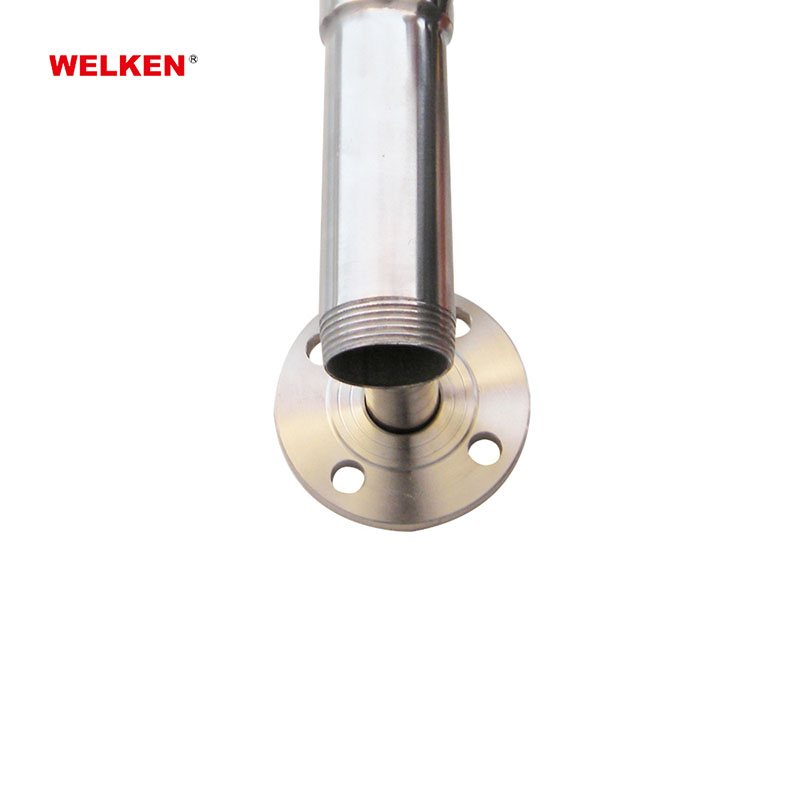

Stainless Steel Core Structure: 304 stainless steel main body provides architectural integrity and superior corrosion resistance for long-term dependability.
02

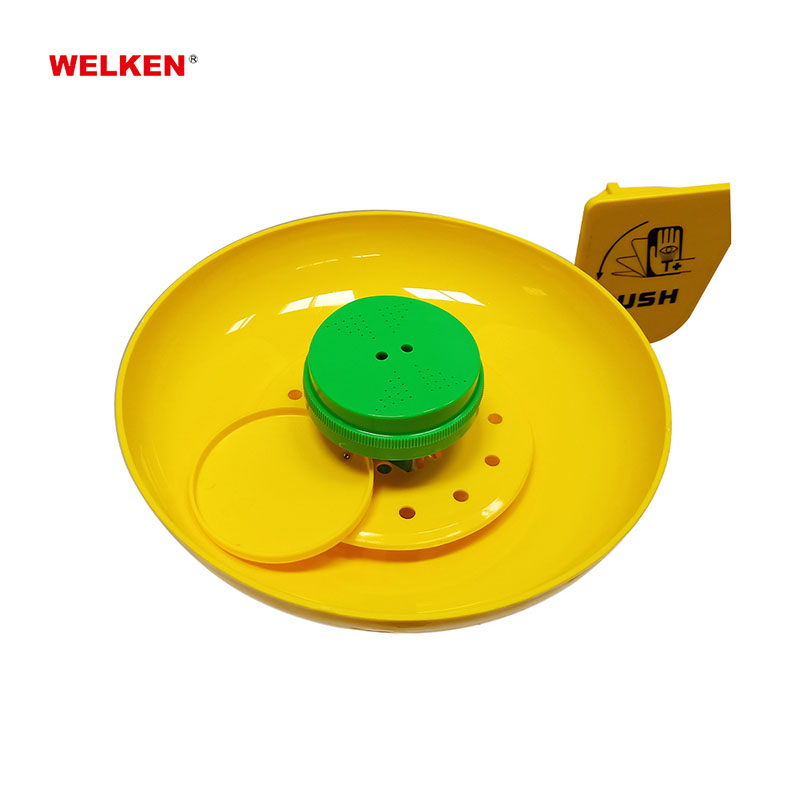

High-Visibility Yellow ABS Eye Bowl: The bright yellow water basin ensures immediate recognition during emergencies while maintaining the chemical resilience of the stainless framework.
03
Integrated Green Face Spray System: Green ABS facial washing jets complement the eye spray function, providing 360-degree head-and-face coverage.
04
Enhanced Slope Surface Design: The angled bowl geometry promotes water distribution across facial areas, minimizing splash and improving contact with affected skin.
05
Automatic Dust Cover Protection: Pop-up shields automatically seal nozzles between uses, reducing contamination risks and prolonging spray head accuracy.
06
Optimal Spray Performance: Delivers consistent high-volume, low-pressure flow (≥11.4 L/Min) for safe and efficient contaminant removal.
07
Cost-Effective Premium Option: Balances stainless steel longevity with ABS visibility at a moderate price point, ideal for upgrading facility-wide coverage.
|
Feature |
Specification |
|
Model |
BD-508D |
|
Eye Wash Bowl |
High-Quality ABS Plastic (Eye-Catching Yellow) |
|
Eyewash Nozzles |
Single Eye/Face Wash Head |
|

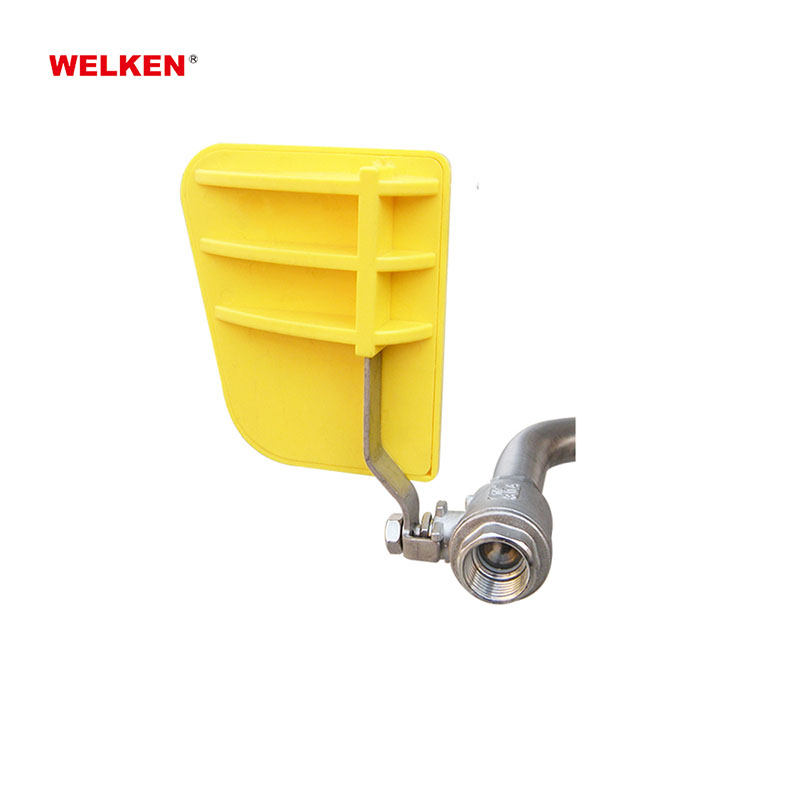

Activation Method |
High-Visibility Manual Pull Board |
|
Eyewash Flow Rate |
≥11.4 L/Min (3 GPM) |
|
Inlet |
1/2’’ |
|
Outlet |
1-1/4’’ |
|
Hydraulic Pressure |
0.2 MPA - 0.6 MPA |
|
Water Source |
Plumbed, Potable Water or Filtered Water |
|
Compliance |
Meets ANSI Z358.1 & CE Standards |
·A controlled, low velocity flow rinses both eyes and
is not harmful to the user.
·Water flow is high enough to allow user to hold eyes
open while rinsing.
·Spray heads are protected from airborne contaminants.
Covers can be easily removed by water flow.
·Unit delivers no less than 0.4 gallons(1.5 liters) per
minutes of clean waters for at least 15 minutes.
·Water flow pattern is positioned between 33” (83.8
cm) and 53” (134.6 cm) from the floor and at least
6” (15.3 cm) from the wall or nearest obstruction.
·Instant activation, hands-free stay-open valve.
·Easily user-accessible actuator.
·Unit washes both eyes simultaneously. Check below
test gauge for a reference of the correct water flow
cover area.
Protective Packaging:
Each unit is encased in molded foam padding and an outer reinforced carton, safeguarding the product against impact and rough handling during transit.
