BD-508C Stainless Steel Eye Face Wash Station
01

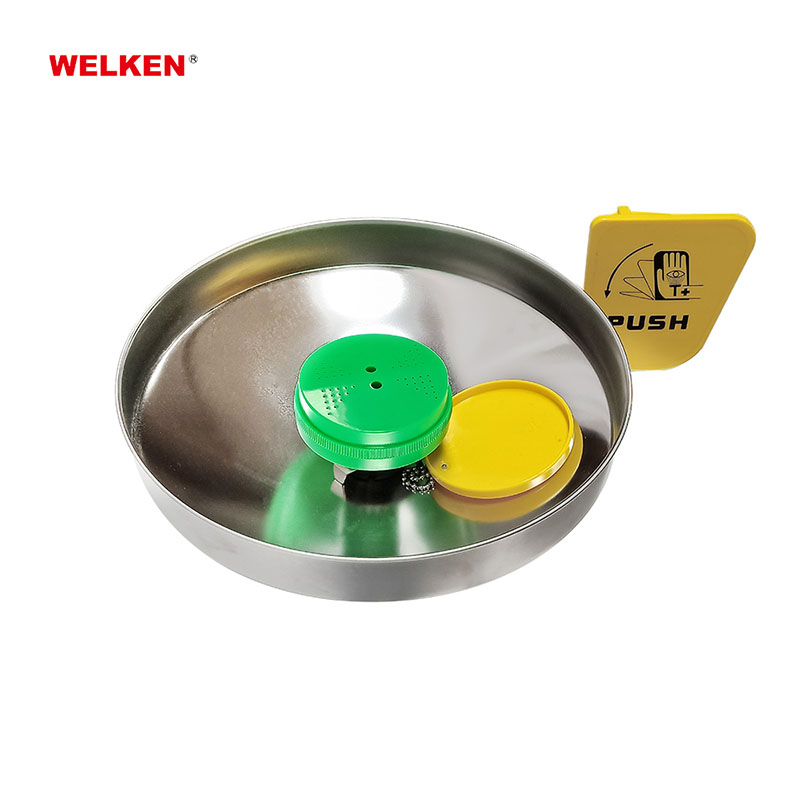

Premium 304 Stainless Steel Bowl: Forged from high-grade 304 stainless steel for regular corrosion resistance, unmatched longevity, and effortless maintenance in aggressive chemical environments.
02
Slope Surface Design: Strategically angled bowl surface directs water flow across the entire face, ensuring comprehensive facial cleansing and preventing pooling or uneven coverage.
03
Dual-Function Eye & Face Washing: Equipped with green ABS eye spray heads and integrated facial washing jets for complete eye-and-face emergency rinsing capability.
04

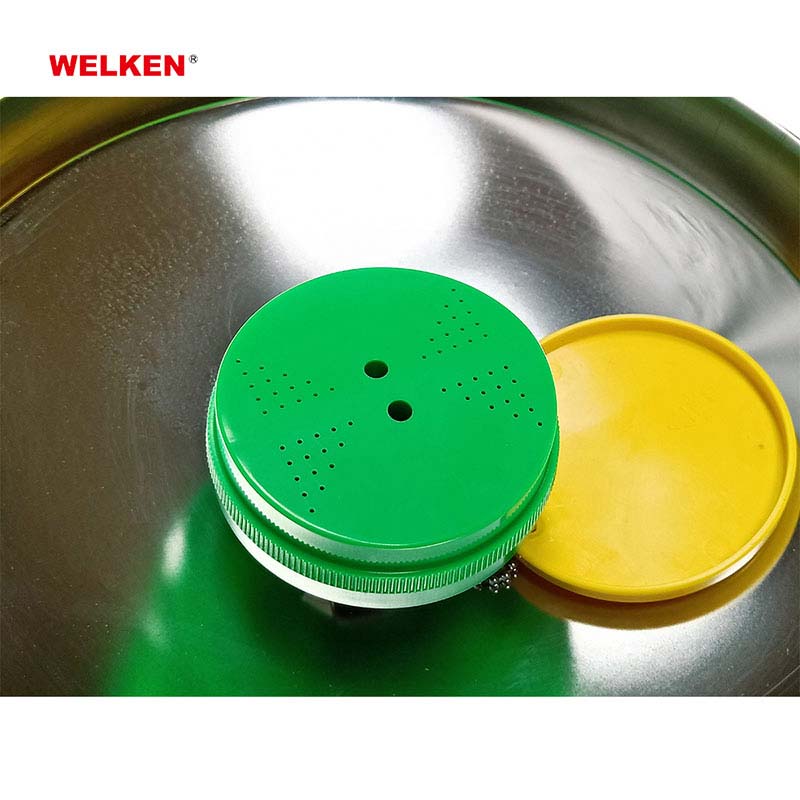

Pop-Up Dust Protection: Automatic lift-off dust covers shield the spray nozzle from dust and debris between uses, maintaining hygiene and spray accuracy.
05
Professional Safety Green Accents: High-visibility green nozzle provide both aesthetics and safety compliance.
06
Comprehensive Contaminant Removal: The angled design combined with dual-spray functionality ensures thorough flushing of chemical splashes from eyes, face, and upper body.
|
Feature |
Specification |
|
Model |
BD-508C |
|
Eye Wash Bowl |
304 Stainless Steel |
|
Eyewash Nozzles |
Single Eye/Face Wash Head |
|
Activation Method |
High-Visibility Manual Pull Board |
|
Eyewash Flow Rate |
≥11.4 L/Min (3 GPM) |
|
Inlet |
1/2’’ |
|
Outlet |
1-1/4’’ |
|
Hydraulic Pressure |
0.2 MPA - 0.6 MPA |
|
Water Source |
Plumbed, Potable Water or Filtered Water |
|
Compliance |
Meets ANSI Z358.1 & CE Standards |
·A controlled, low velocity flow rinses both eyes and
is not harmful to the user.
·Water flow is high enough to allow user to hold eyes
open while rinsing.
·Spray heads are protected from airborne contaminants.
Covers can be easily removed by water flow.
·Unit delivers no less than 0.4 gallons(1.5 liters) per
minutes of clean waters for at least 15 minutes.
·Water flow pattern is positioned between 33” (83.8
cm) and 53” (134.6 cm) from the floor and at least
6” (15.3 cm) from the wall or nearest obstruction.
·Instant activation, hands-free stay-open valve.
·Easily user-accessible actuator.
·Unit washes both eyes simultaneously. Check below
test gauge for a reference of the correct water flow
cover area.
Protective Packaging:
Each unit is encased in molded foam padding and an outer reinforced carton, safeguarding the product against impact and rough handling during transit.
